ATEN CL1000N DE Single Rail 19\" LCD console, 19\" 1U, DE layout (PS/2-USB, VGA)

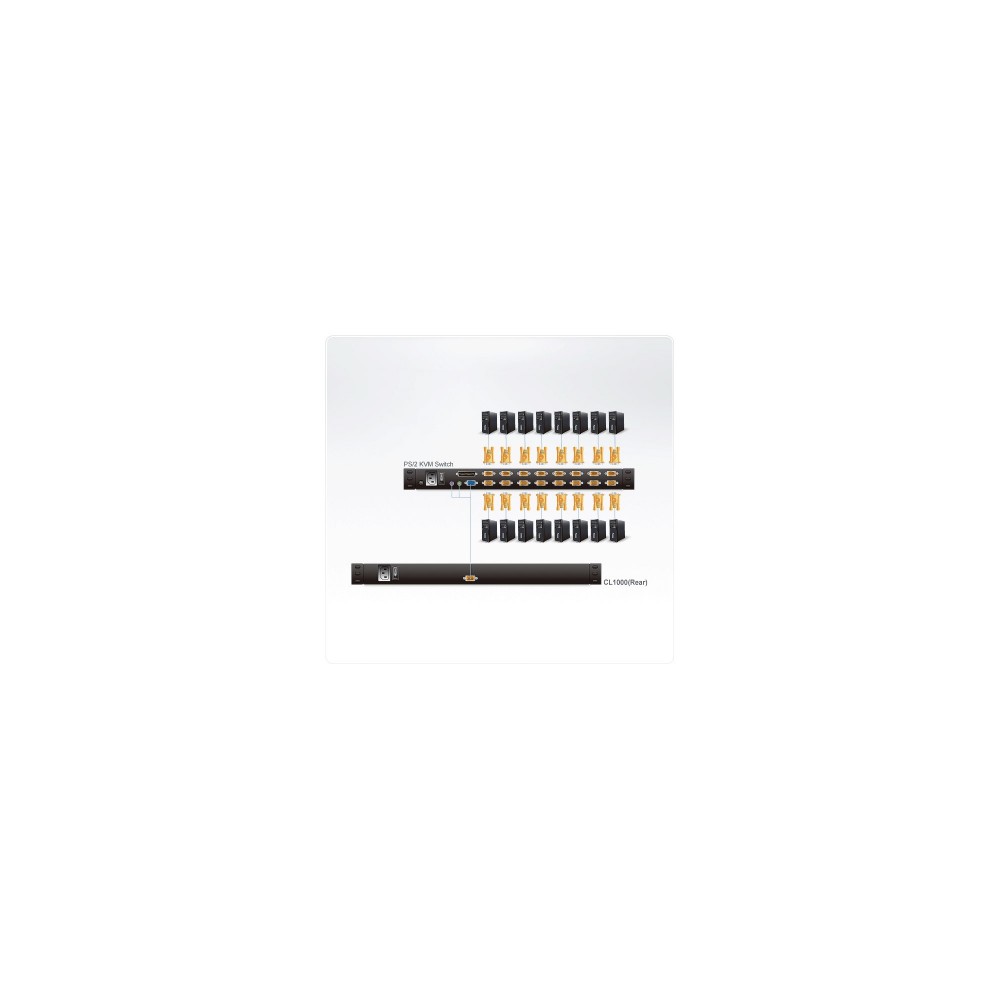

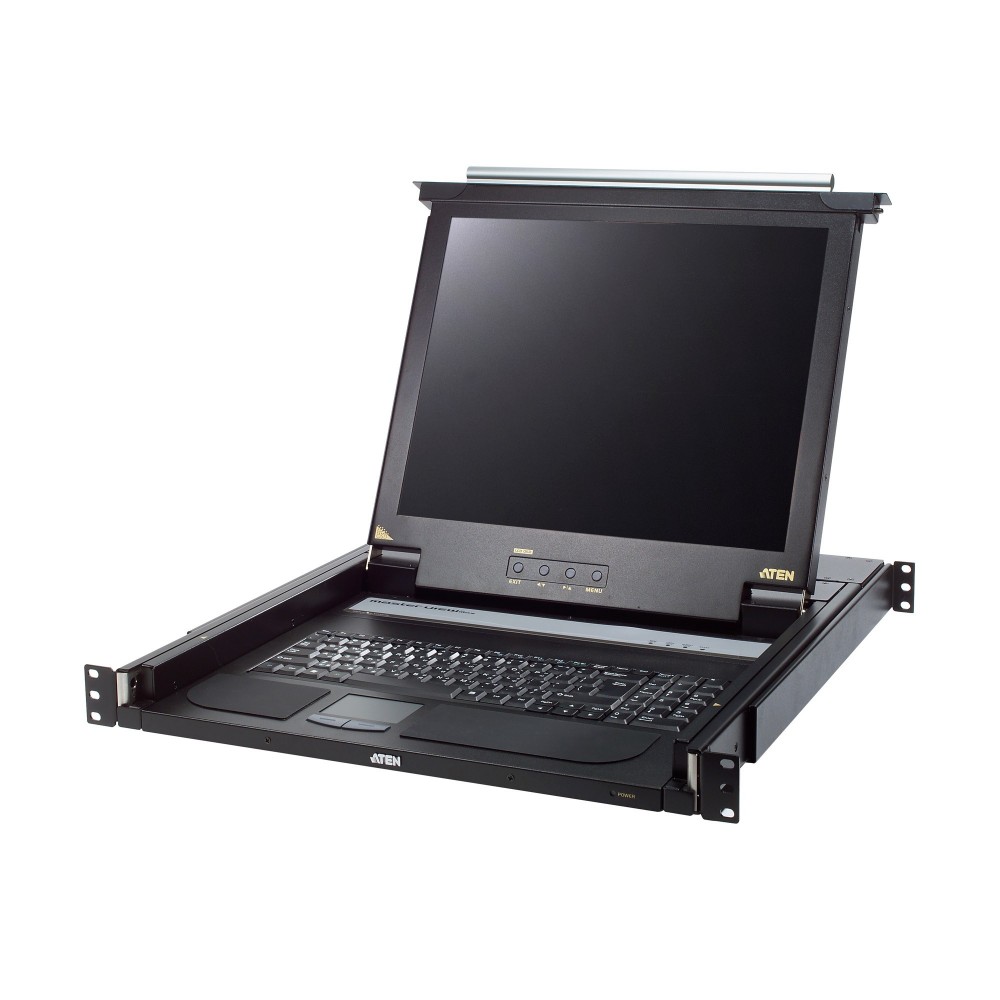

The CL1000N is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000N features an integrated 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing. Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000N LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site. Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions Integrated KVM console with 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack, Compatible rack mounting kit: 2X-023G, 2X-024G, 2X-025G LCD module rotates up to 115 degrees for a more comfortable viewing angle Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack Compatible with most PS/2 KVM Switches Internal power supply Adjustable depth to fit within a rack High video resolution: Supports input video resolutions up to 1920 x 1200 @ 60 Hz and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen Supports DDC, DDC2, DDC2B DDC emulation of the LCD monitor–Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek (CL1000N only), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese Improved design – optional single person installation kit Delivery contents: 1x CL1000N with standard rack mounting kit 1x 2L-5202UP Custom KVM cable (VGA, USB 1.8 m/6 ft) 1x LIN2-418K-E12G power cable 1x User manual Decive CL1000M CL1000N Computer Connections Direct 1 1 Connectors KVM Ports 1 x SPHD Female (Yellow) 1 x SPHD Female (Yellow) Power 1 x 3-prong AC Socket 1 x 3-prong AC Socket Switches Reset 1 x Semi-recessed Pushbutton 1 x Semi-recessed Pushbutton Power 1 x Rocker N/A LCD Power 1 x Pushbutton 1 x Pushbutton LCD Adjustment 4 x Pushbutton 4 x Pushbutton LEDs Power 1 x KVM Console (Dark Green) 1 x LCD (Orange) 1 x KVM Console (Dark Green) 1 x LCD (Orange) Lock 1 x NumLock (Green) 1 x CapsLock (Green) 1 x ScrollLock (Green) 1 x NumLock (Green) 1 x CapsLock (Green) 1 x ScrollLock (Green) Video Input Video Resolution 1920 x 1200 @ 60Hz DDC2B 1920 x 1200 @ 60Hz DDC2B Panel Spec LCD Module 17\" TFT-LCD 19\" TFT-LCD Resolution 1280 x 1024 @ 75 Hz 1280 x 1024 @ 75 Hz Pixel Pitch 0.264 mm x 0.264 mm 0.294 mm x 0.294 mm Response time 5 ms 5 ms Viewing Angle 170° (H), 160° (V) 170° (H), 160° (V) Contrast Ratio 1000:1 1000:1 Support Color 16.7M colors 16.7M colors Luminance 250 cd/m² 250 cd/m² Emulation Keyboard / Mouse PS/2 PS/2 Maximum Input Power Rating 100-240 VAC 50-60 Hz 1A 100-240 VAC 50-60 Hz 1A Power Consumption AC110V:19.6W:92BTU AC220V:21.3W:100BTU AC110V:29.2W:137BTU AC220V:29.3W:137BTU Environmental Operating Temperature 0-50°C 0-50°C Storage Temperature -20-60°C -20-60°C Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing Physical Properties Housing Metal+Plastic Metal+Plastic Weight 12.02 kg ( 26.48 lb ) 11.06 kg ( 24.36 lb ) Dimensions (L x W x H) 48.00 x 53.83 x 4.40 cm (18.9 x 21.19 x 1.73 in.) 48.30 x 58.52 x 4.40 cm (19.02 x 23.04 x 1.73 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
