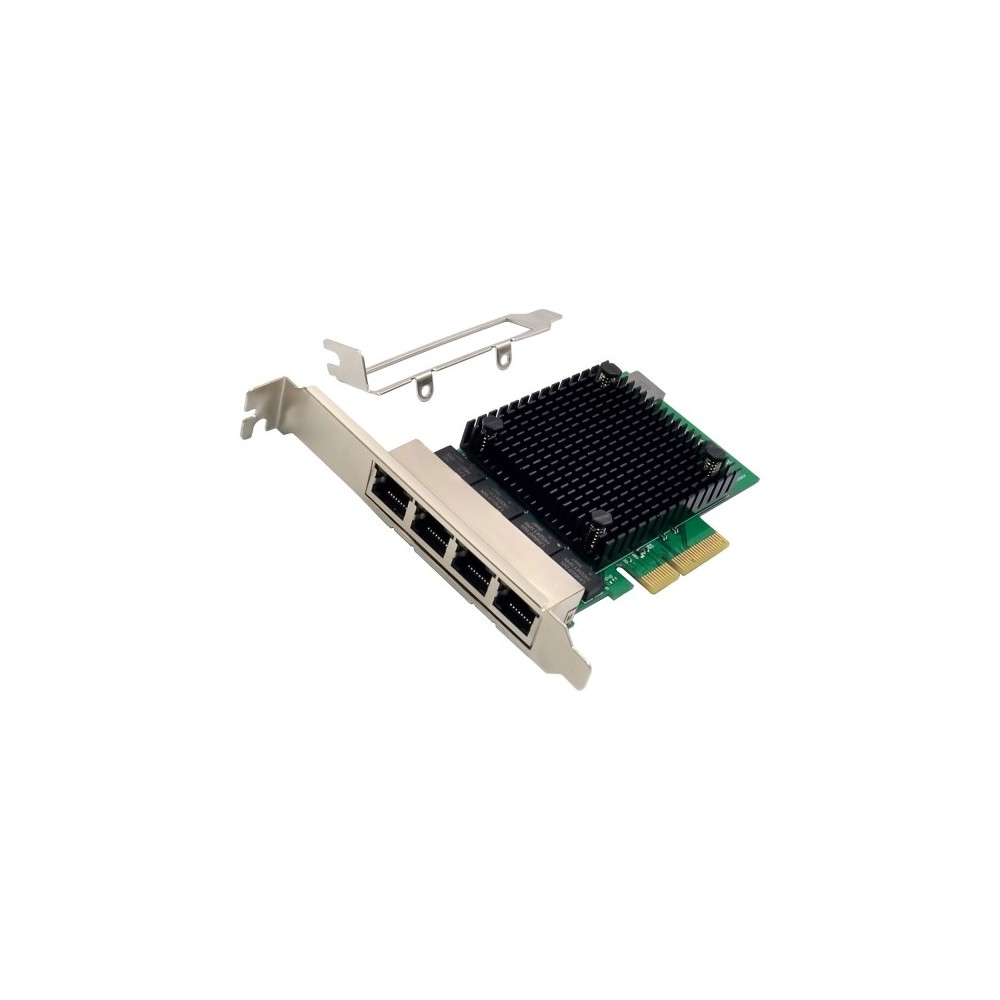

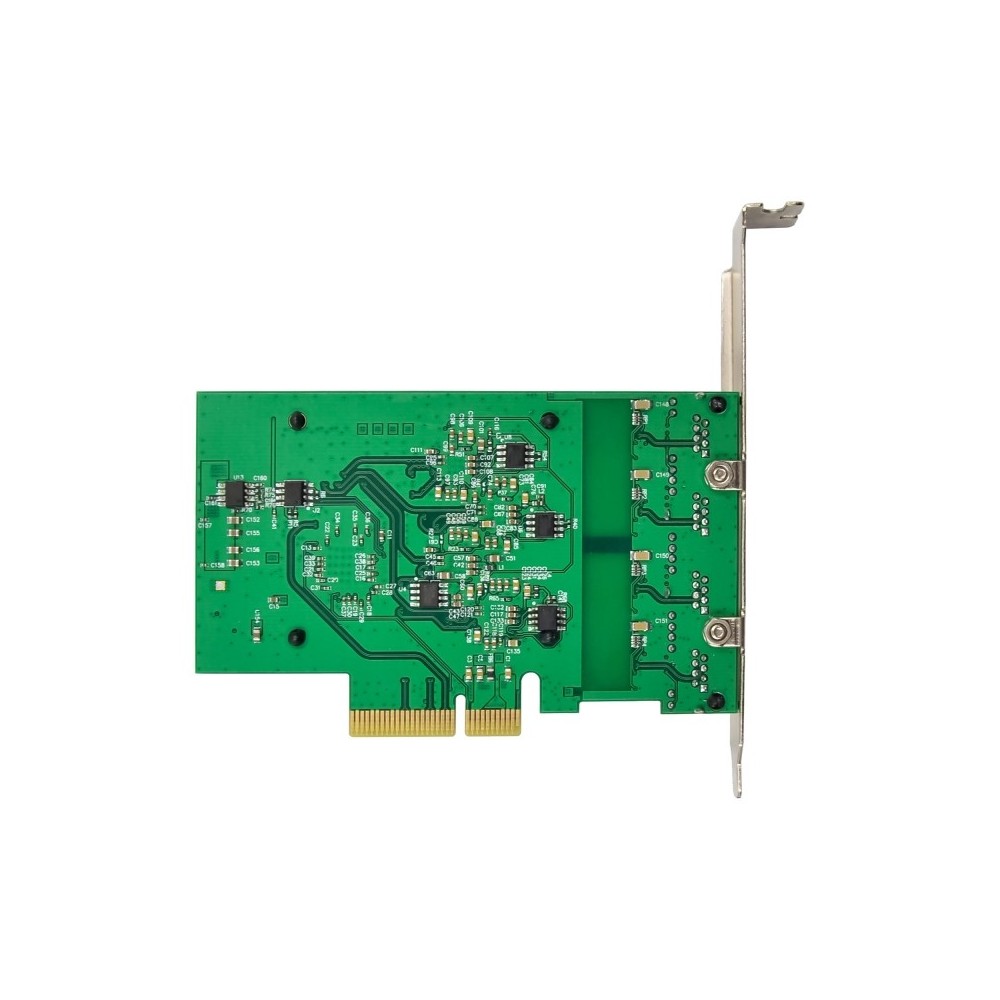

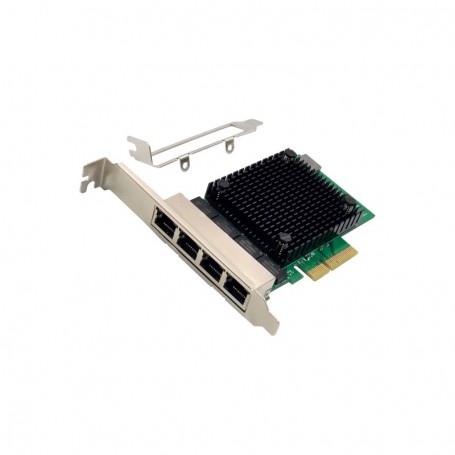

InLine® Quad Gigabit network card, 4x RJ45 2.5Gb/s, PCIe x4, incl. LP bracket

This InLine® Quad Gigabit Ethernet PCIe adapter is a high performance 10/100/1000/2.5G BASE-T Ethernet LAN controller, which is perfect for home and office use. It offers a cost-effective solution for connecting to a network at a data transfer rate of up to 2500 Mb/s and can be used with any Cat.5e cabling or higher up to a maximum distance of 100 metres without any problems. Features / Specifications Chipset Realtek RTL8125B Complies with PCI Express revision V2.1 2-Lane PCI Express bus connecting with up to 10Gbps bus width PCI Express interface: x4 Supports 1-Lane 2.5/5 Gb/s PCI Express Bus Supports 2.5G and 1G Lite mode Auto-Negotiation with Extended Next Page capability (XNP) Supports pair swap/polarity/skew correction Supports hardware ECC (Error correction code) function Supports hardware CRC (Cyclic Redundancy Check) function Supports PCI MSI (Message Signaled Interrupt) and MSI-X Transmit/Receive on-chip buffer support Supports ECMA-393 ProxZzzy Standard for sleeping hosts Supports Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up) Supports IEEE1588v1, IEEE1588v2, IEEE80.2AS time synchronization Supports IEEE802.1Qav credit-based shaper algorithm Supports IEEE802.1P Layer 2 priority encoding Supports IEEE802.1ad Double VLAN Supports IEEE802.3az (Energy Efficient Ethernet, EEE) Supports IEEE802.3bz (2.5GBase-T) Supports jumbo frames up to 16KB Supports Virtual Machine Queue(VMQ) Supports quad core Receive –Side Scaling(RSS) Supports Protocol Offload (ARP&NS) Backwards compatible with 10/100BASE-TX networks 10 / 100 / 1000 / 2500 Mb/s data rate Compatible with existing CAT-5e UTP cabling or higher Fully compliant with IEEE 802.3, 802.3u, 802.3ab Supports full duplex flow control (IEEE 802.3x) Supports IEEE 802.1Q VLAN tagging Crossover detection and auto-correction mode Supports Microsoft Windows Vista or newer, Server 2008 or newer, Linux Kernel 2.4.x or newer
