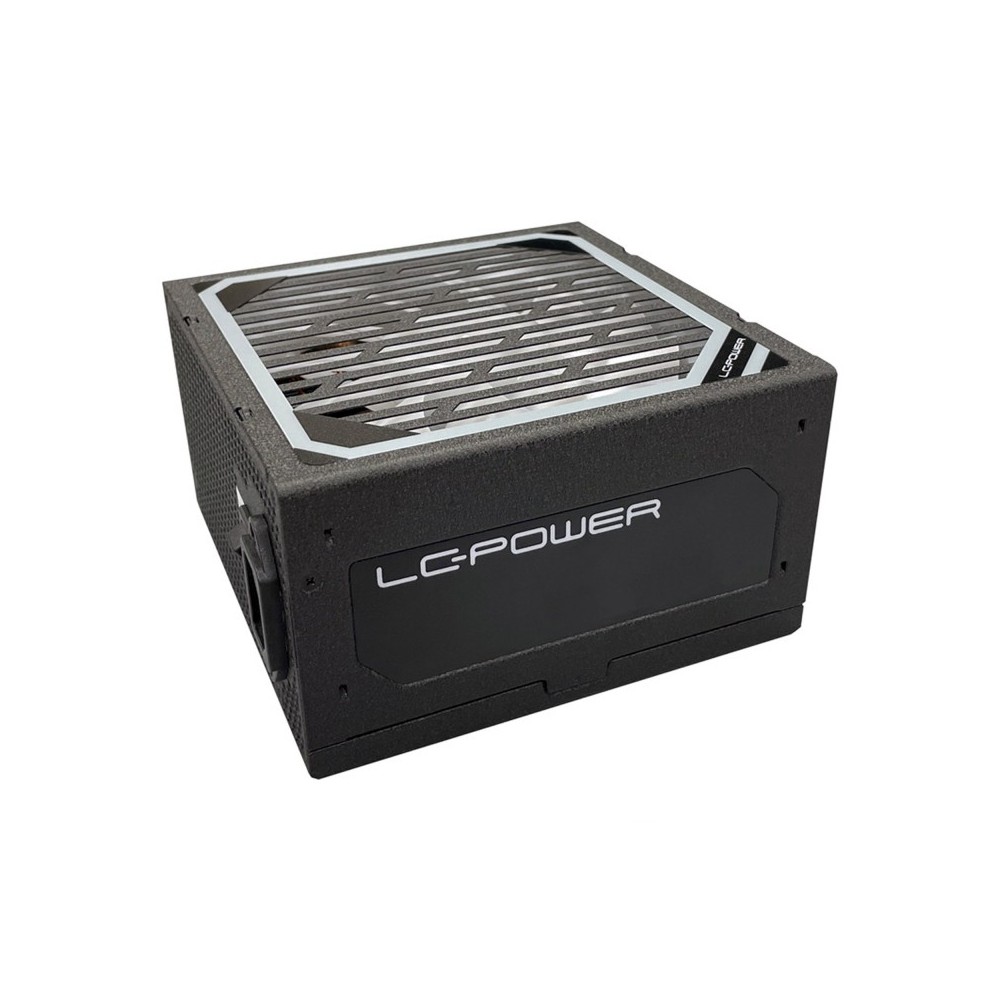

LC-Power LC6750M V3.0, ATX power supply Super Silent Modular Series, 750W, 80+

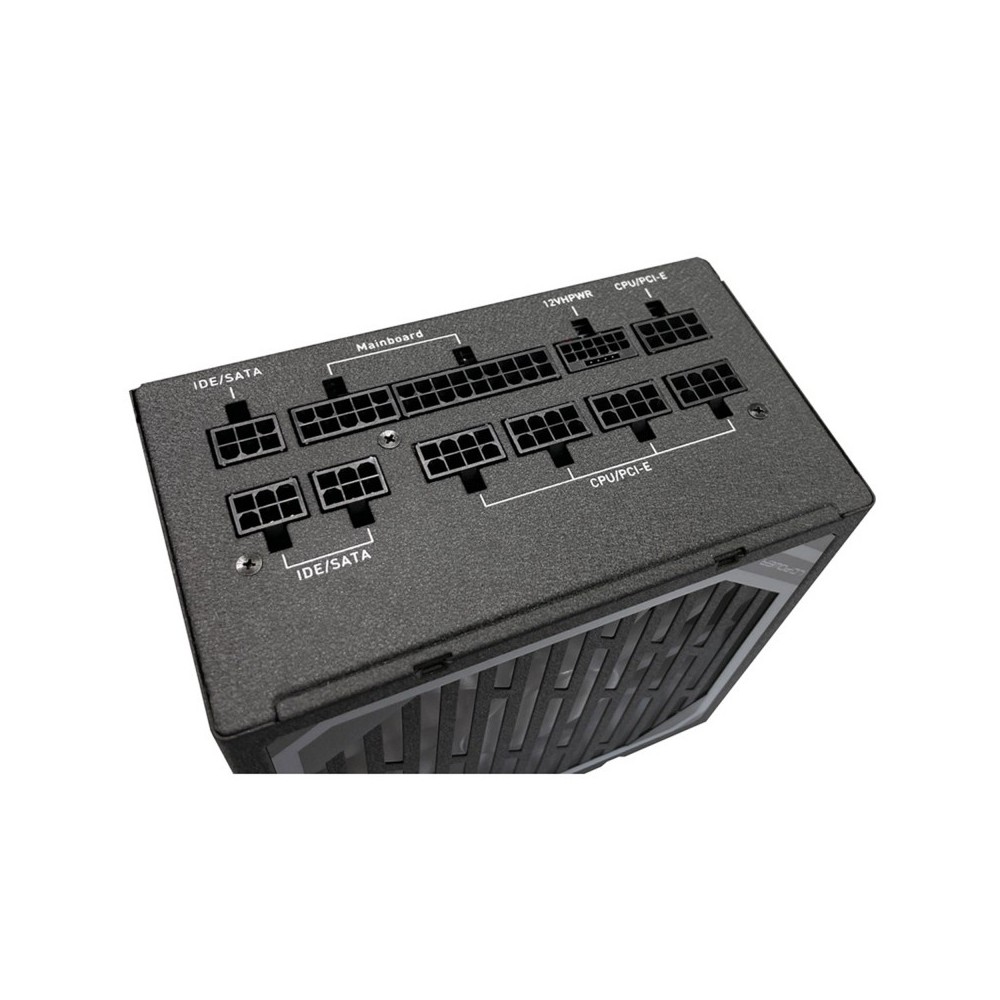

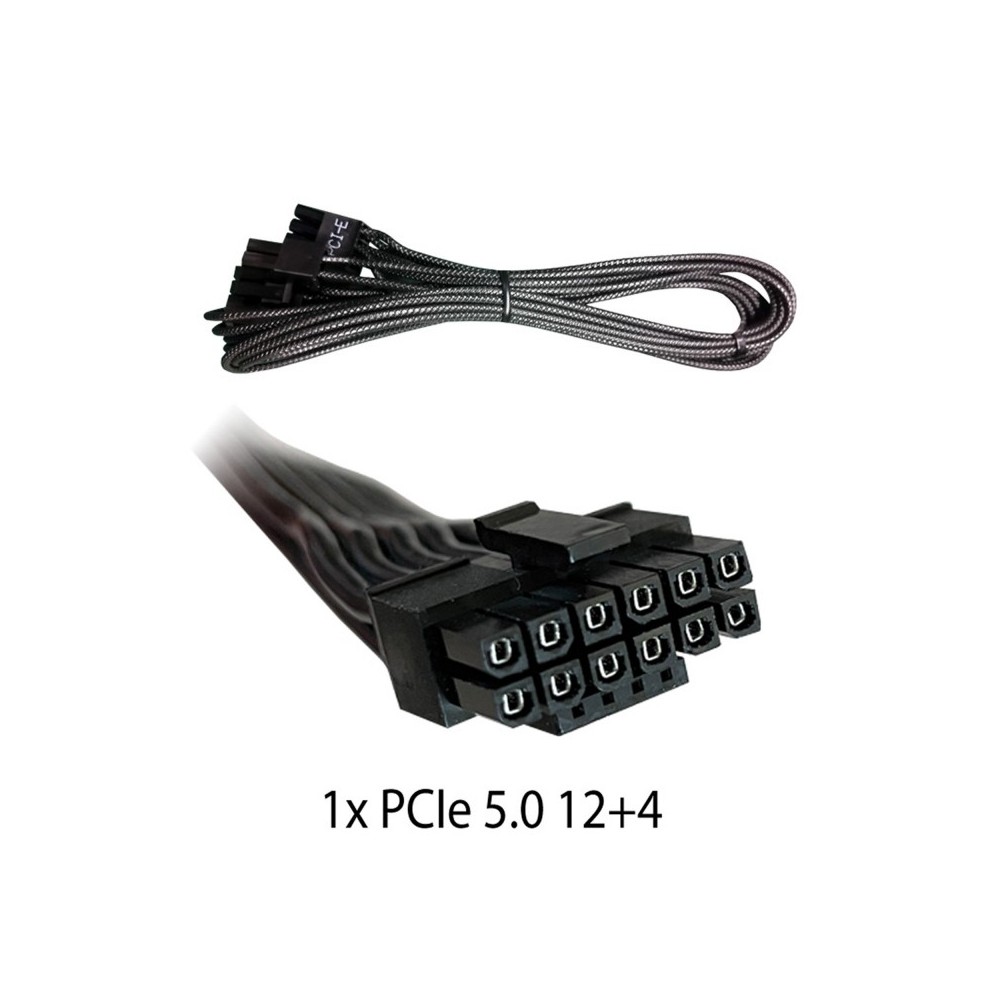

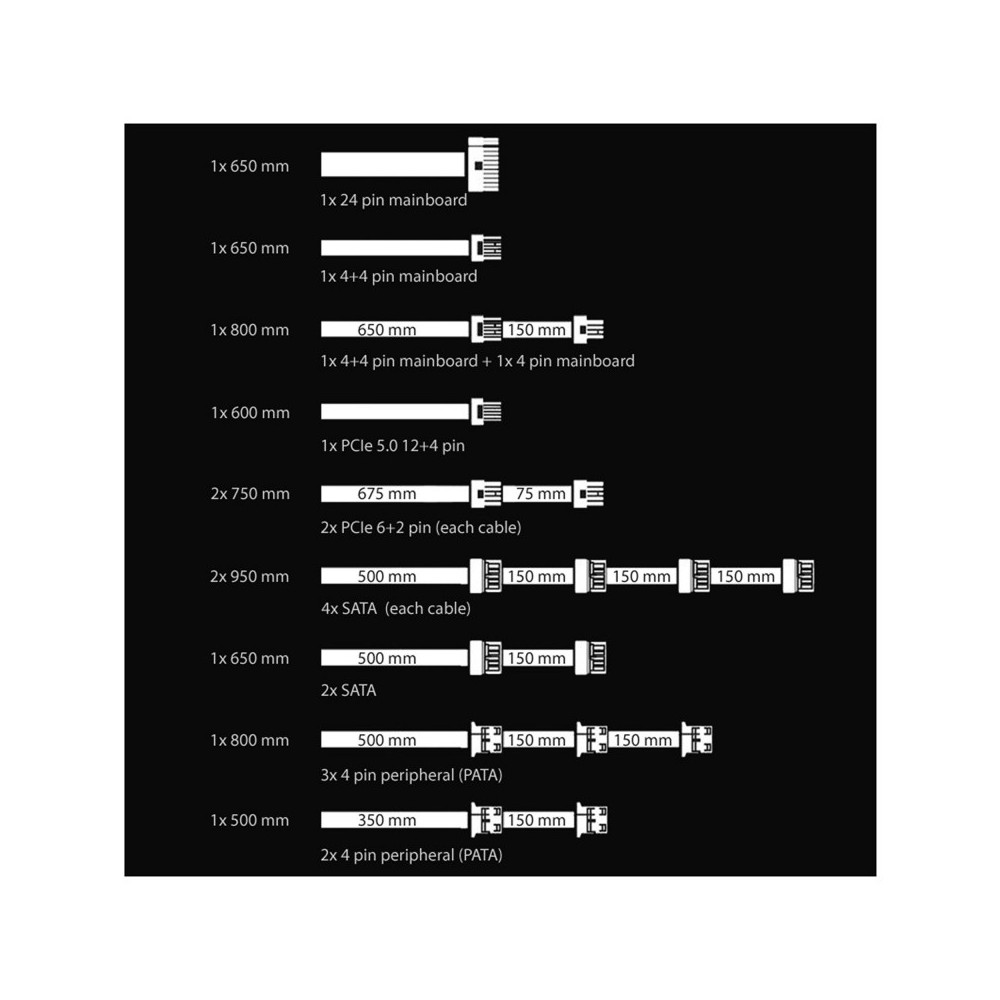

The LC6750M V3.0 is an 80 PLUS® GOLD certified, fully modular ATX power supply that ensures high performance and stability in your system. ATX form factor Total power: 750 W 135 mm fan Fully modular cable management Black sleeved cables 80 PLUS® GOLD certified High efficiency of up to 90 Full range: 100 - 240 V AC input voltage DC-to-DC technology Powerful +12 V line (62.4 A) 4x PCI-Express 6+2-Pin 1x PCI-Express 5.0 12+4-Pin Power supply series: Super Silent Modular ATX standard: ATX V3.0 Connectors: 20+4-pin mainboard (1x 650 mm), 4+4-pin mainboard 12 V (8-pin EPS) (2x 650 mm), 4-pin mainboard 12 V (1x 800 mm), PCI-Express 5. 0 12+4-pin (1x 600 mm), PCI-Express 6+2-pin (4x total 2x 675 mm / 2x 750 mm), SATA (10x total 3x 500 mm / 3x 650 mm / 2x 800 mm / 2x 950 mm), PATA (5x total 1x 350 mm / 2x 500 mm/ 1x 650 mm / 1x 800 mm) SATA & PATA connection options: 10x SATA & 0x PATA / 8x SATA & 3x PATA / 4x SATA & 5x PATA, FDD: - PFC: active Power supply unit dimensions: 86 x 150 x 151 mm Packaging dimensions: 115 x 275 x 200 mm Weight (product / total): 2.52 / 2.83 kg Voltages / max. currents: +3.3 V / 20.0 A - +5.0 V / 20.0 A, max. combined 100.0 W - +12.0 V / 62.4 A, max. combined 748.8 W Standby consumption Temperature-dependent control for housing fan Safety circuits: OVP = overvoltage protection, OCP = overcurrent protection, OPP = overpower protection, SCP = short-circuit protection, UVP = undervoltage protection Colour: black hammer finish
