InLine® Installation Cable S/FTP PiMF Cat.7a AWG23 1200MHz B2ca halogen free orange 50m

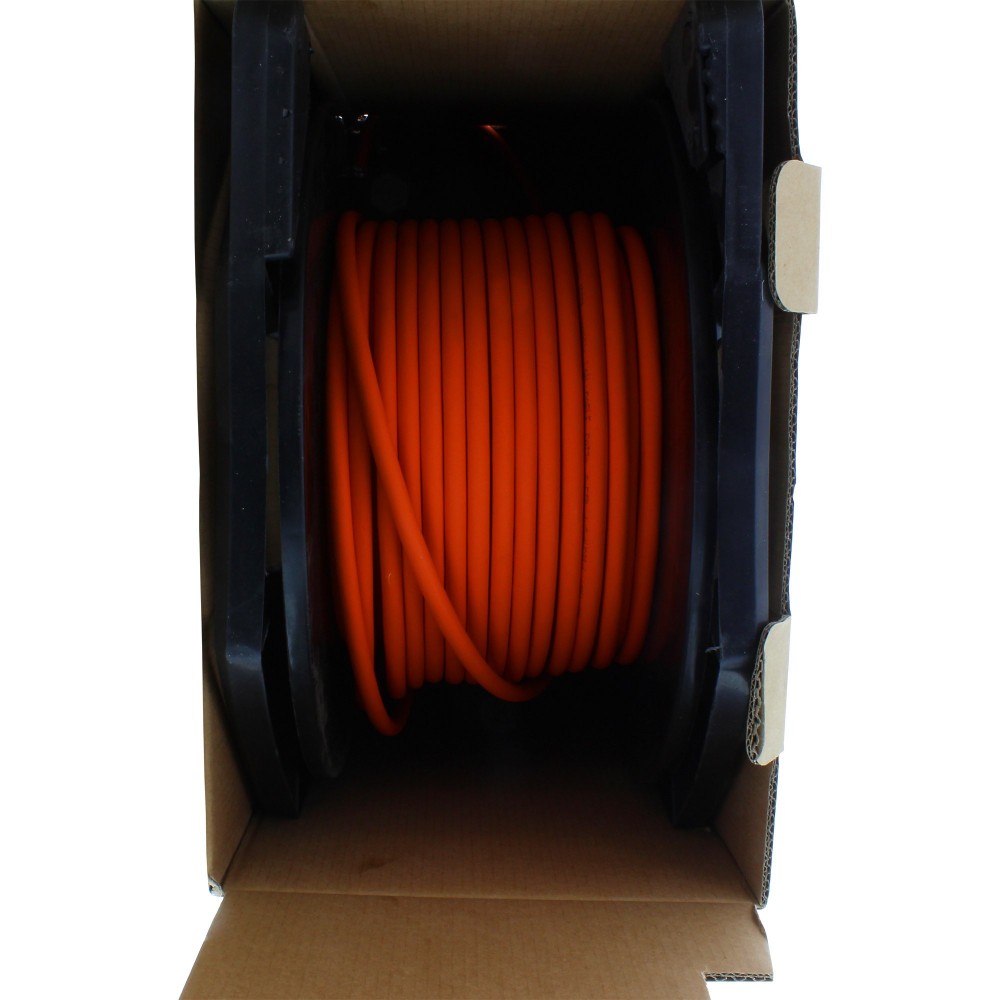

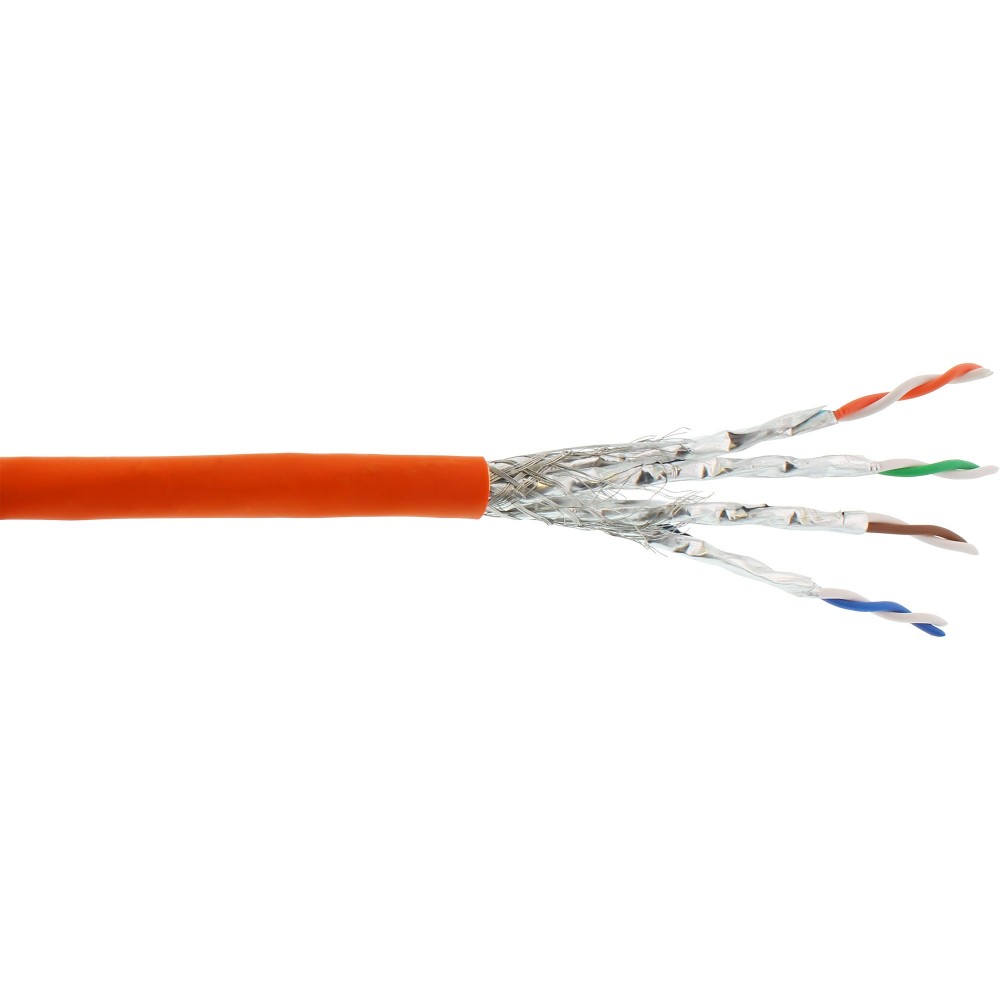

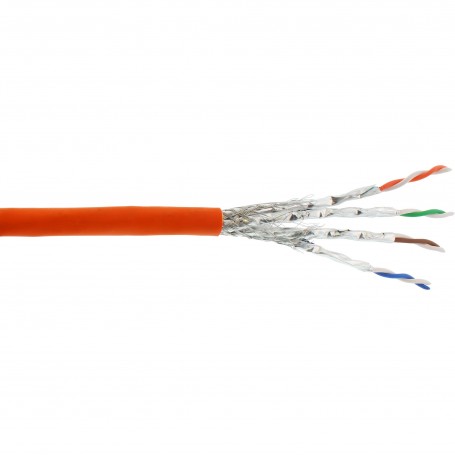

The installation cable is delivered in a drum box for easy removal of the required length. The packaging consists of a plastic reel on which the data cable is rolled up. This roll is fixed in a reinforced cardboard box, which ensures simple and tangle-free unrolling. The reel box offers the following advantages:Cost reduction through easy handling on the construction site without additional unwinding deviceHandy and stackable packaging, convenient to transport in the construction site vehicleLow weight (can also be sent by parcel service)Avoidance of soiling and transport damage to the cable through repackaging by means of cardboardReduction of cutting costs for small quantitiesTechnical data: Cable for installationCat. 7a installation cable up to 1200MHzConstruction: 4x2xAWG23/1 PIMF (0.58mm²)Suitable up to 10 GbitFull copper coresImpedance: 100Ohm, DC resistance: max. 93.8 Ohm/kmSheath halogen-free LSZHSheath colour orangeConstruction: In pairs in metal foilOverall braided shieldingCable diameter approx. 7.8mmInstallation temperature: 0 - 50°C, Operating temperature: -20°C - 60°C, Storage temperature: -20°C - 50°CWith remaining metre indication on cableFire behaviour B2ca according to EN 50575: 2014 / A1:2016Note: The drum box is only available for the bundles 50m, 100m, 300m, whereas 500m is delivered on a drum, the lengths 10m and 25m are delivered in a box.Couleur : orangeTaille : 50m
