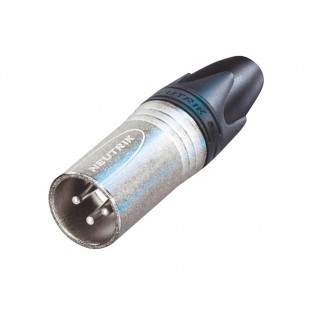

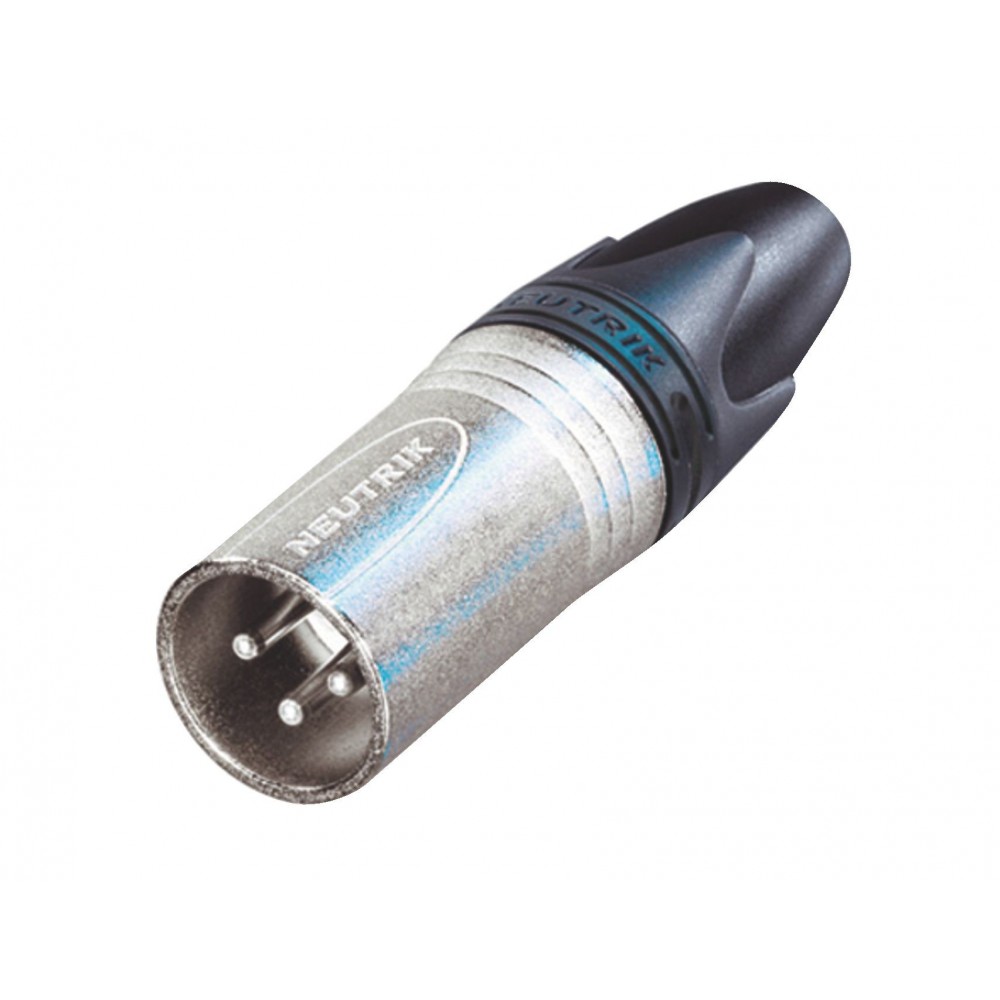

connecteur argenté NC3MXX

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.TECHNICAL DATAProduct • Connector: Type XLR • Gender: male Electrical• Number of contacts: 3 • Contact resistance: ≤: 3 m • Insulation resistance initial: > 2 G • after damp heat test: > 1 G • Dielectric strength: 1500 V dc• Rated current: 16 A• AWG: 2.5 mm²/14 AWG• Capacitance between contacts: ≤: 4 pFMechanical • Lifetime: >1000 cycles• Insertion / withdrawal force: ≤: 20 N• Cable O.D. range: 3.5 mm - 8.0 mm Materials• Shell: ZnAl4Cu1, gal Ni over Cu plating• Insert: PA 6.6 30% GR (glass reinforced)• Contacts: CuZn39Pb3• Contact surface: gal 2 µm Ag • Strain-relief clamp: POM• Antikink bushing: PUREnvironmental • Flammability: UL 94 HB • Standard compliance: IEC 61076-2-103 • Protection class: IP 40 • Solderability: Complies with IEC 68-2-20 • Temperature range: -30 °C to +80 °C
